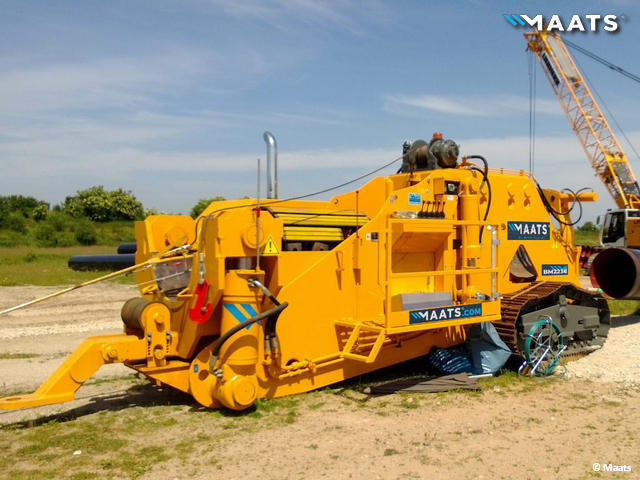

The MAATS BM22-36 Pipe Bending Machine is engineered for bending pipe diameters ranging from 22″ to 36″ and has an operating weight of approximately 25.500 kg. It is powered by the FPT N45 engine (125 kW), compliant with EU Stage IV and EPA Tier 4 Final emission standards, ensuring efficient and low-emission performance on pipeline job sites.

Working range : 22" to 36"

Operating weight: 22.500 kgs

Engine: FPT N45 - 125 kW (EU Stage IV and EPA Tier4F)

Manufacturer: MAATS

Request information

Download leaflet

Looking for more working range?

Explore the Maats BM32-42

MAATS BM32-42 Working range: 32" to 42"

Need more information?

Please contact our sales department, they can and will be happy to help you.

+31 (0)547 260 000

info@maats.com

Specifications

Configured with a Liebherr-integrated hydraulic system, the BM22-36 is equipped with a hydraulic PTO to drive a mandrel for controlled bending operations. Units in the Maats rental fleet feature a tracked chassis with 508 mm track pads, a hydraulic-driven winch and a 16 mm x 25 m cable for secure handling during bending procedures. Optional bending sets and dies are available to cover the full pipe diameter range according to specific project requirements.

Model Pipe bending machine for 22" to 36"
Engine make & model FPT N45
Engine output 125 kW
Emission standards EU Stage IV and EPA Tier4F
Standard configuration LIEBHERR Integrated
Hydraulic PTO to drive a mandrel
Tracked chassis
Track pads 508 mm
Hydraulic driven winch
Cable 16 mm x 25 meters
Optional Equipment Bending sets & Dies

Frequently Asked Questions

Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present.

Maats' services

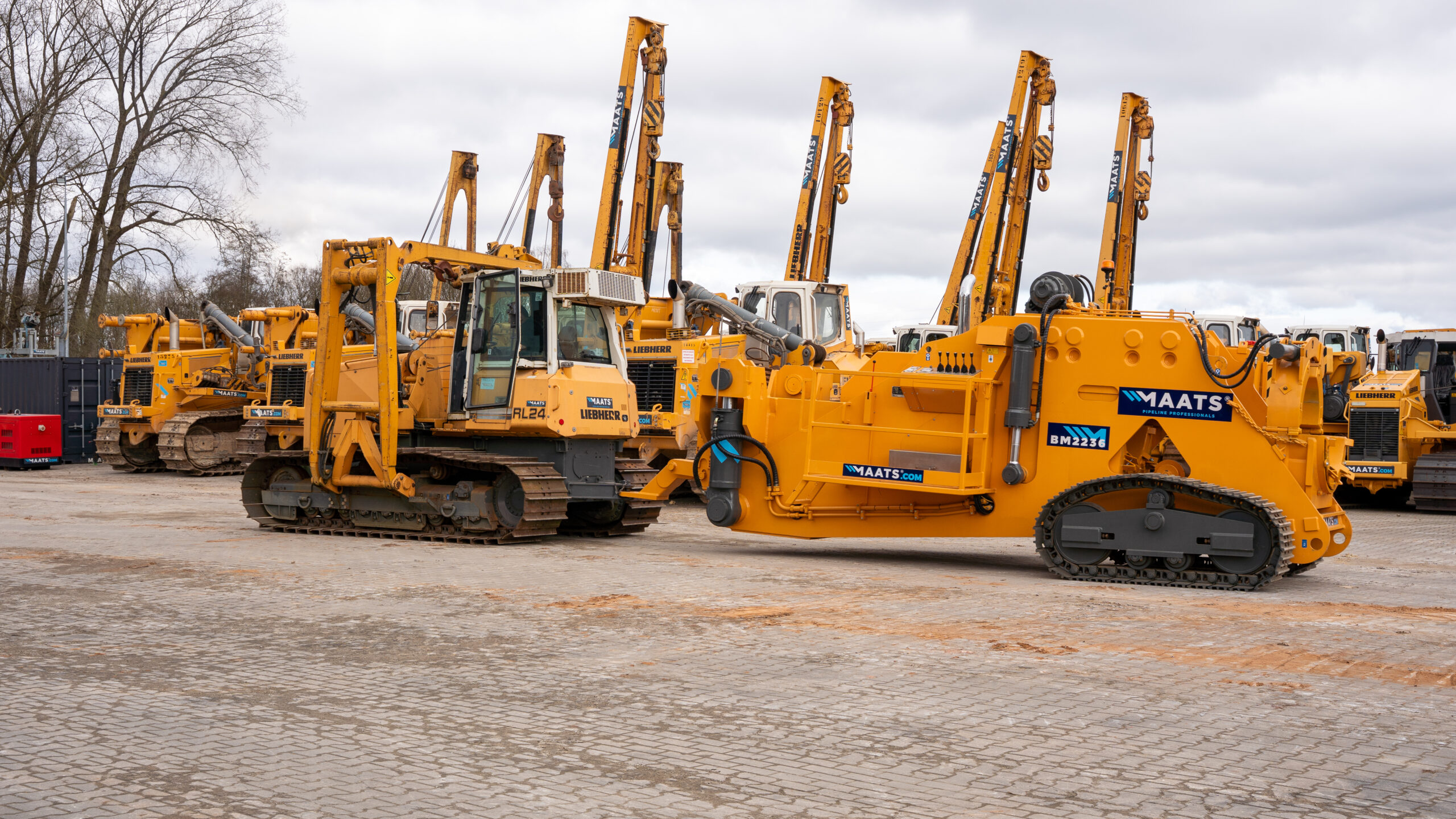

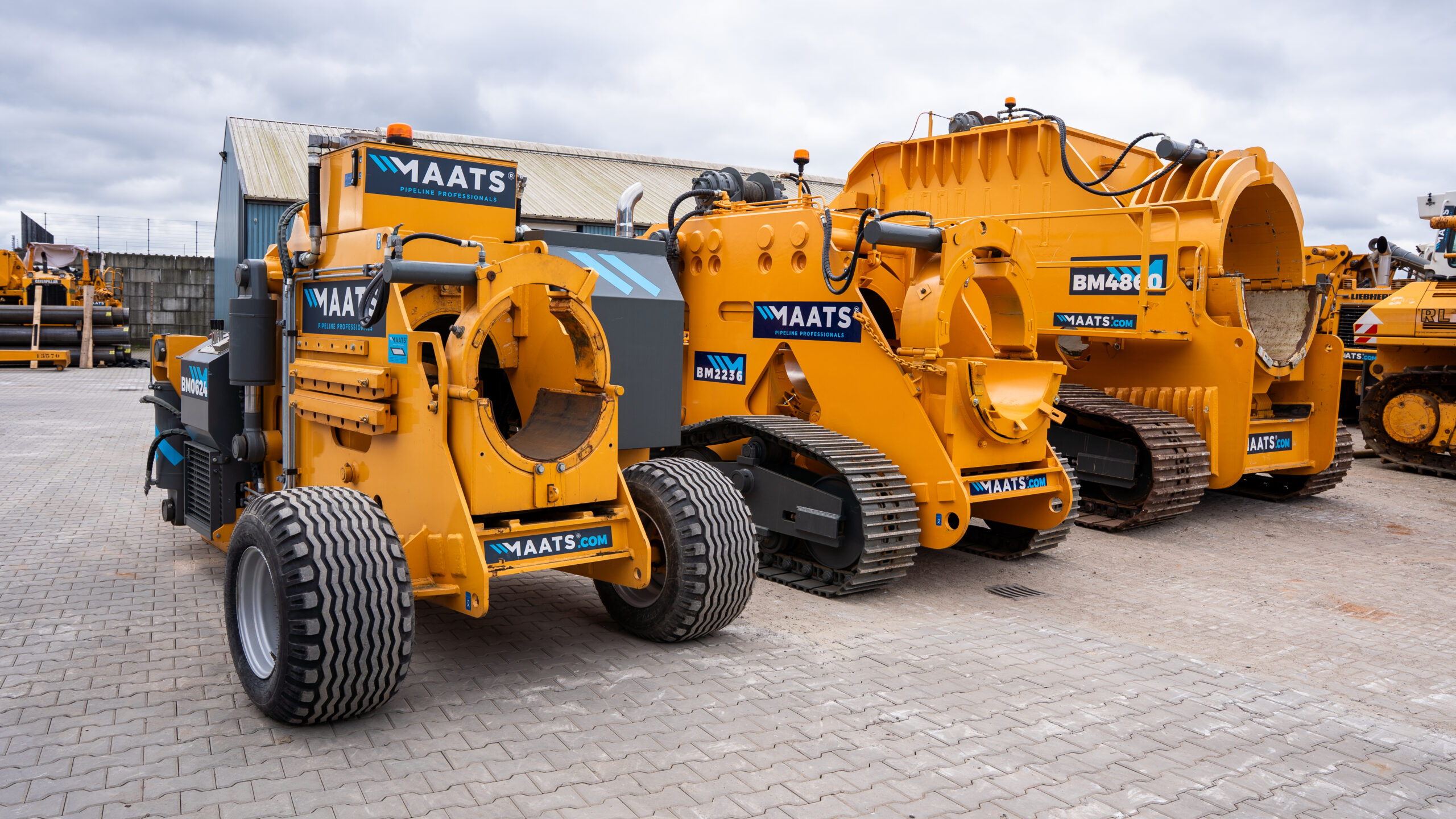

We provide a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment and more. Please visit our Equipment page for the full delivery program and specifications.

Go to Equipment page

Yes, we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that suits your specific project requirements.

Absolutely! All our equipment is inspected, certified and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.

Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.

Definitely. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
