MAATS BM32-42

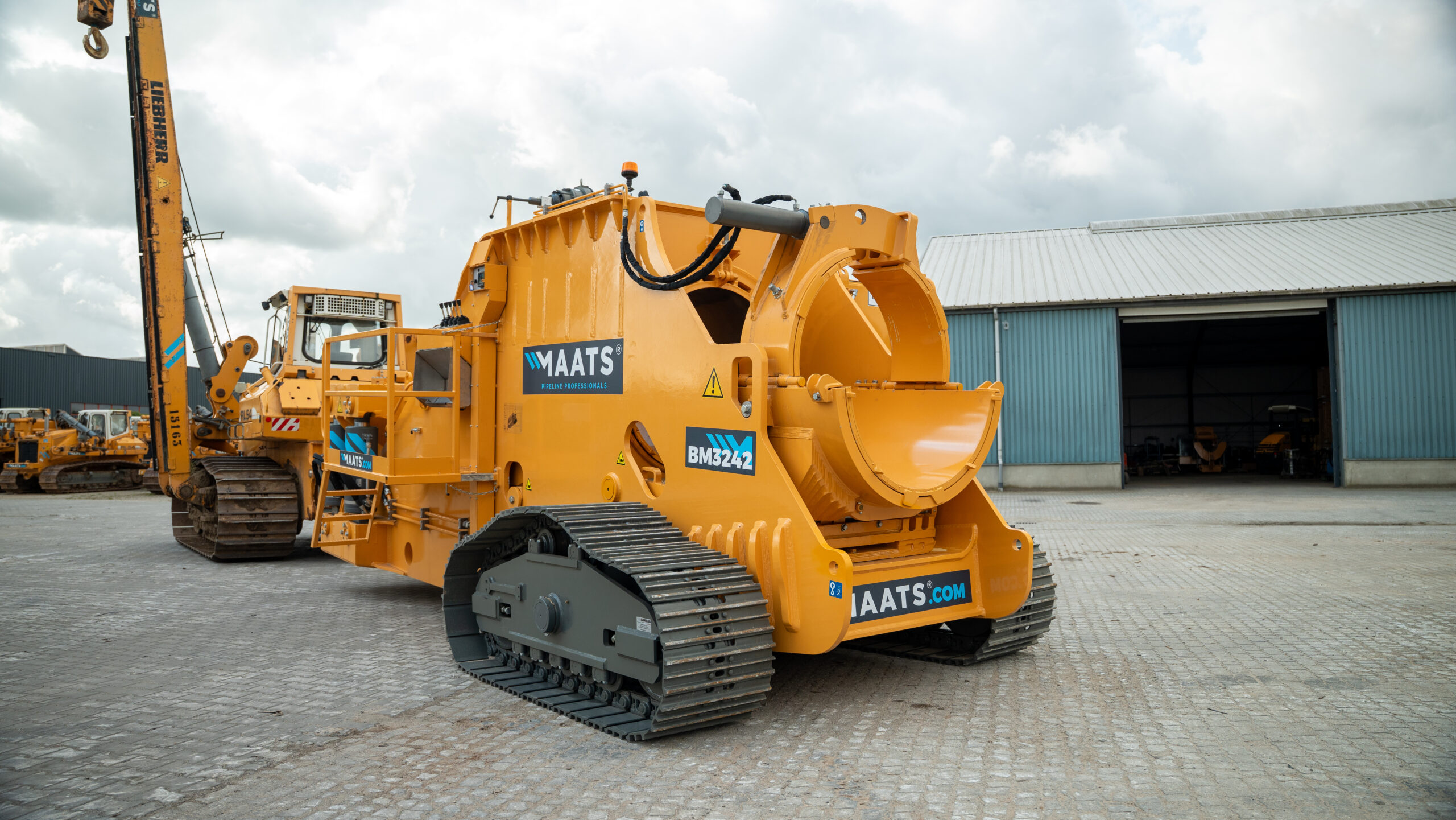

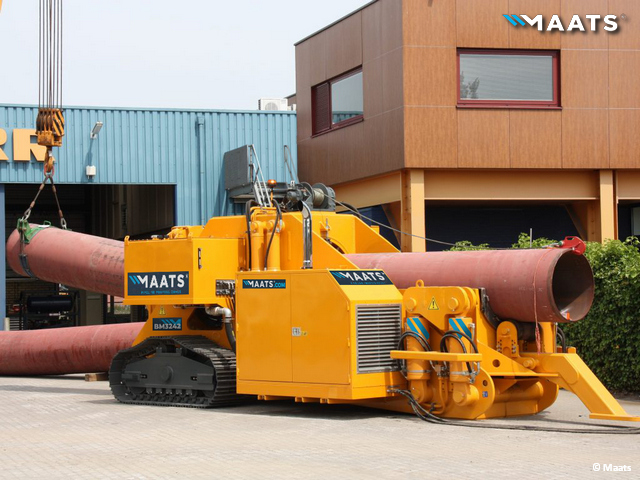

The MAATS BM32-42 Pipe Bending Machine is designed for bending pipe diameters from 32″ to 42″ and has an operating weight of approximately 42.500 kg. It is powered by the FPT N45 engine (125 kW), compliant with EU Stage IV and EPA Tier 4 Final emission standards, offering efficient and low-emission operation for large-diameter pipeline projects.
Looking for more working range?
Explore the Maats BM36-48
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
Equipped with a Liebherr-integrated hydraulic system, the BM32-42 features a hydraulic PTO to drive a mandrel for precise bending control. Units in the Maats rental fleet are built on a tracked chassis with 610 mm track pads, and include a hydraulic-driven winch with a 16 mm x 25 m cable for secure pipe handling during bending operations. Optional bending sets and dies are available to match specific pipe sizes within the 32″ to 42″ working range.
- Model Pipe bending machine for 32" to 42"
- Engine make & model FPT N45
- Engine output 125 kW
- Emission standards EU Stage IV and EPA Tier4F
-
Standard configuration
LIEBHERR Integrated
Hydraulic PTO to drive a mandrel
Tracked chassis
Track pads 610 mm
Hydraulic driven winch
Cable 16 mm x 25 meters - Optional Equipment Bending sets & Dies
Frequently Asked Questions
Frequently Asked Questions
Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present.
Maats' servicesWe provide a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment and more. Please visit our Equipment page for the full delivery program and specifications.
Go to Equipment pageYes, we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that suits your specific project requirements.
Read moreAbsolutely! All our equipment is inspected, certified and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.
Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.
Read moreDefinitely. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
