MAATS BM48-60

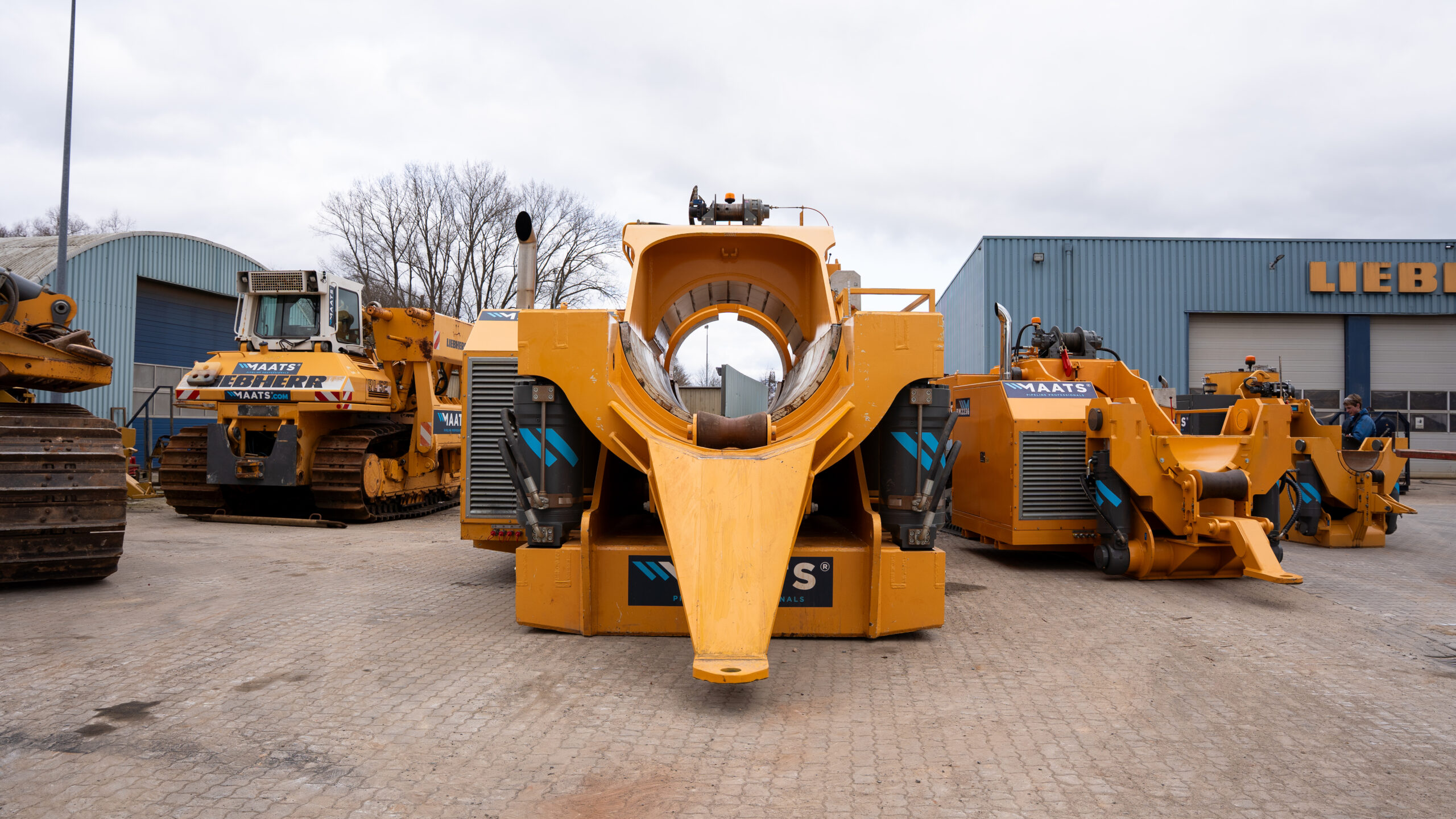

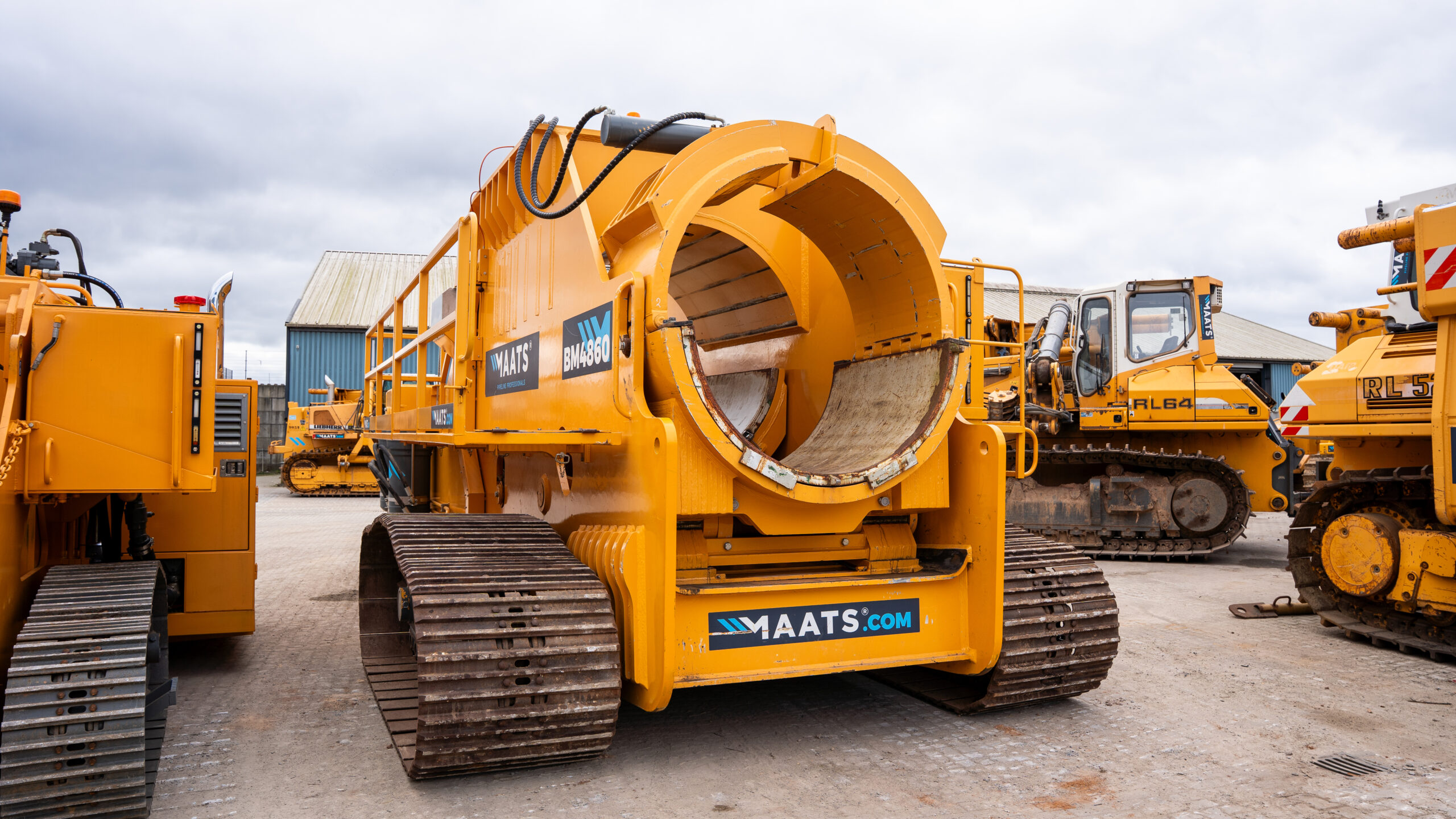

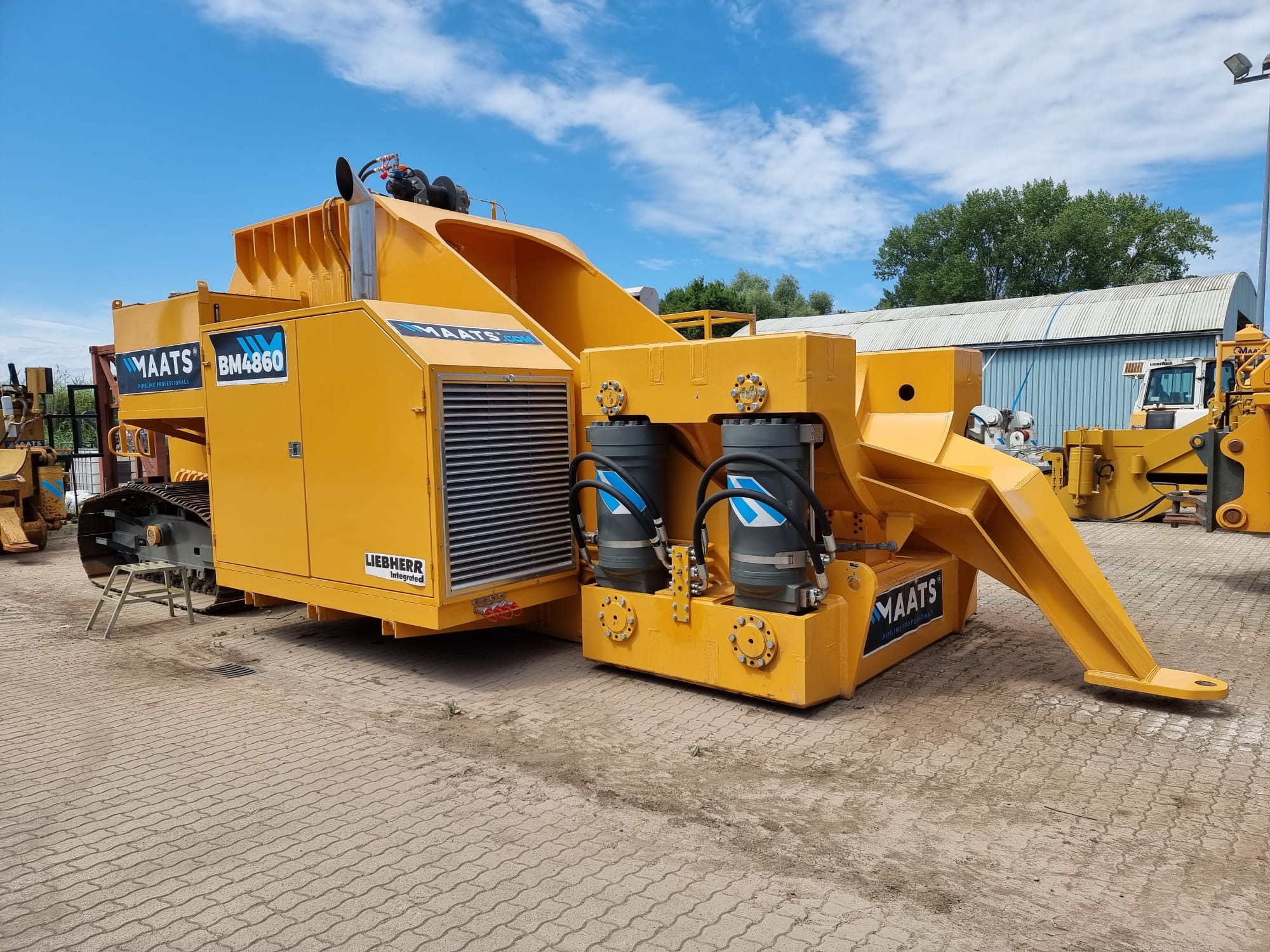

The MAATS BM48-60 Pipe Bending Machine is designed for bending large-diameter pipes from 48″ to 60″ and has an operating weight of approximately 88.000 kg. It is powered by the high-performance Liebherr D946 L A6 engine (275 kW), compliant with EU Stage IIIA and EPA Tier 3 emission standards, delivering the power required for heavy-duty pipeline bending applications.
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
Featuring a Liebherr-integrated hydraulic system, the BM48-60 is equipped with a hydraulic PTO to drive a mandrel, supporting accurate and consistent bending performance on large pipe diameters. Units in the Maats rental fleet are built on a tracked chassis with 914 mm track pads and include a hydraulic-driven winch with a 16 mm x 25 m cable for secure control during bending procedures. Optional equipment includes a compressor, cold start device, extended cable length up to 50 m, non-standard track pads and chain lengths, as well as dedicated bending sets and dies tailored to specific pipe dimensions.
- Model Pipe bending machine for 48" to 60"
- Engine make & model LIEBHERR D946 L A6
- Engine output 275 kW
- Emission standards EU Stage IIIA and EPA Tier3
-
Standard configuration
LIEBHERR Integrated
Hydraulic PTO to drive a mandrel
Tracked chassis
Track pads 914 mm
Hydraulic driven winch
Cable 16 mm x 25 meters -
Optional Equipment
Compressor
Cold start device
Non-standard track pads & chain length
Cable 16 mm x 50 meters
Bending sets & Dies
Frequently Asked Questions
Frequently Asked Questions
Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present.
Maats' servicesWe provide a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment and more. Please visit our Equipment page for the full delivery program and specifications.
Go to Equipment pageYes, we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that suits your specific project requirements.
Read moreAbsolutely! All our equipment is inspected, certified and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.
Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.
Read moreDefinitely. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
