Maats RL24

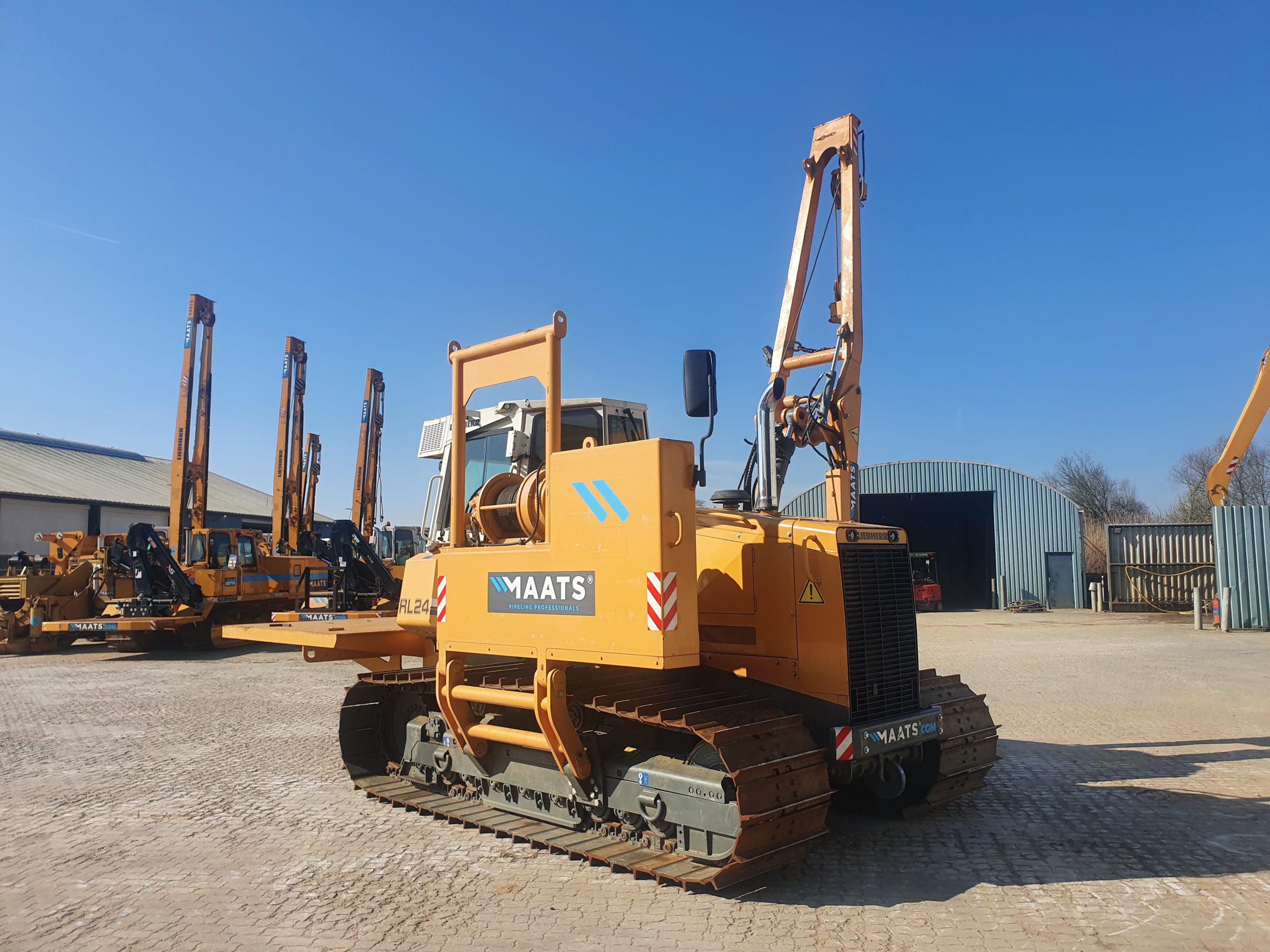

The Maats RL24 Sideboom Pipelayer delivers a lifting capacity of 24.000 kg with an operating weight of approximately 21.900 kg. It is powered by the John Deere PowerTech 6068H engine (90 kW), compliant with EU Stage IIIA emission standards, offering reliable performance in regions where non-AdBlue machines are preferred.
Looking for more lifting capacity?
Explore the Maats RL26
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
Designed for efficient handling in medium-duty pipeline operations, the RL24 combines compact transport dimensions with solid lifting capability. The ROPS cab with heating and air conditioning ensures operator comfort in changing climates, while the 5.160 mm hinged boom, hydraulic winch with free fall control and fixed counterweight provide stable and accurate load control. Track pads in 762 mm width, centre track guide and an acoustic back-up alarm further contribute to safe and controlled machine operation on uneven terrain.
- Certification CE
- Engine make & model Diesel engine 90 kW
- Engine output 122 HP @ 2.100 rpm
- Emission standards EU Stage IIIA
-
Standard configuration
Closed ROPS cabin with heater and airco
Center track guide
Back-up alarm (acoustic)
Fixed counterweight
5.160 mm boom, fixed
Hydraulic drivem hoist winch
Free fall control
Hydraulic PTO
Lubricated single grouser track pads 762/762 mm - Optional equipment 0-8,9 km/h infinitely variable travel speed (forward and reverse)
