LIEBHERR RL22B

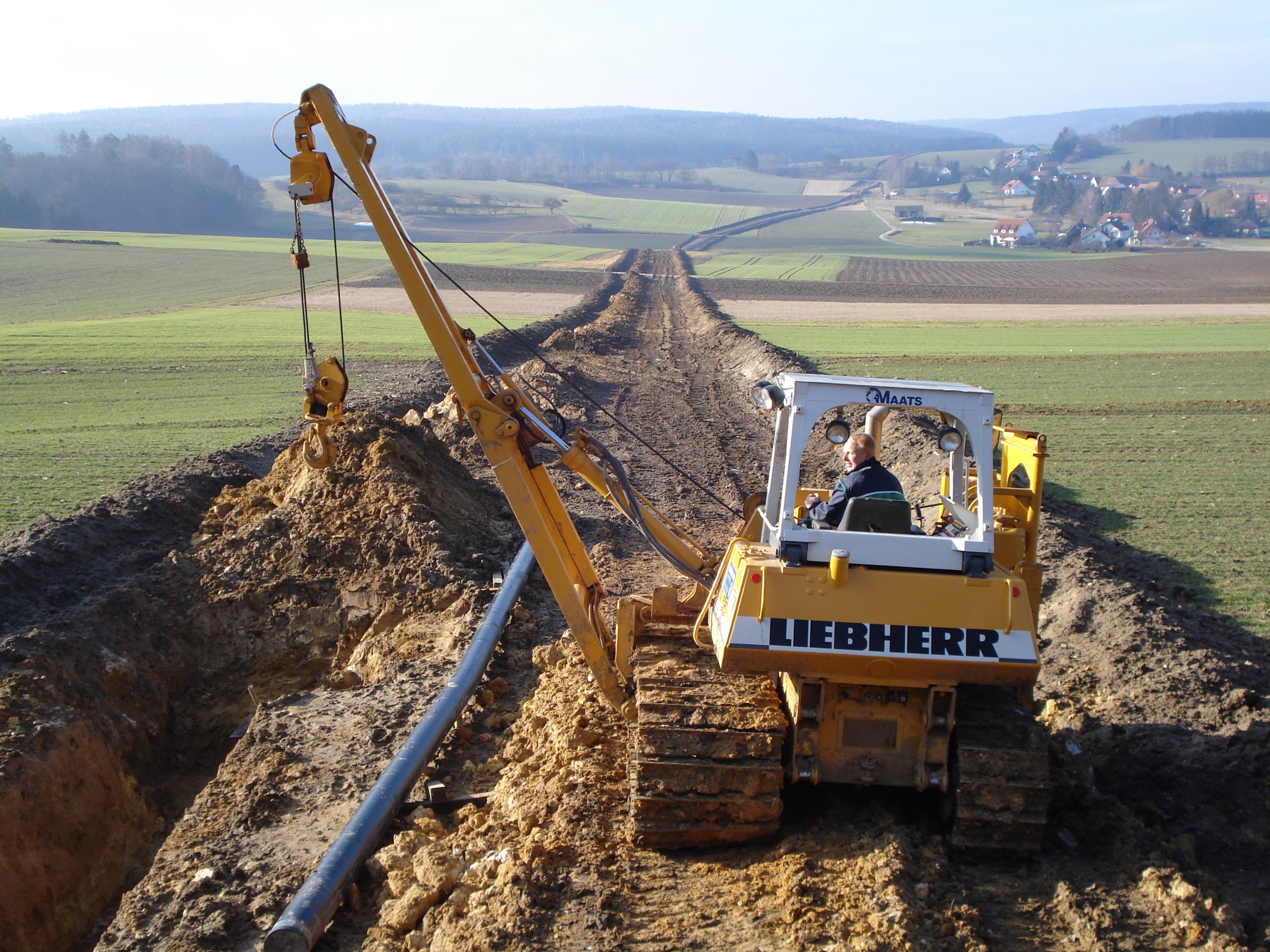

The LIEBHERR RL22B Sideboom Pipelayer offers a lifting capacity of 21.200 kg with an operating weight of approximately 20.500 kg. It is powered by the Liebherr D924 T-E engine (97 kW), compliant with EU Stage IIIA and USA EPA Tier 3 emission standards, making it suitable for international pipeline projects where reliable non-AdBlue power units are preferred.
Looking for more lifting capacity?
Explore the MAATS RL24
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
Compact yet capable, the RL22B is designed for precision handling in light to medium pipeline operations. The ROPS cab with heating, combined with a 4,740 mm hinged boom, fixed counterweight and hydraulic winch with free fall control, ensures controlled and stable lifting performance. Track pads in 914 mm or 610 mm width, a centre track guide and acoustic back-up alarm support safe maneuvering across varied terrain. Units in the Maats rental fleet are additionally equipped with a welding platform featuring a 100 kVA generator, hydraulic PTO and jib, enhancing on-site versatility.
- Certification CE
- Engine make & model LIEBHERR D924 T-E
- Engine output 97 kW, 132 HP @ 2.000 rpm
- Emission standards LIEBHERR D924 T-E
-
Standard configuration
Closed ROPS cabin with heater
Center track guide
Back-up alarm (acoustic)
Fixed counterweight
4.740 mm boom, hinged
Hydraulic driven hoist winch
Free fall control
Hydraulic PTO

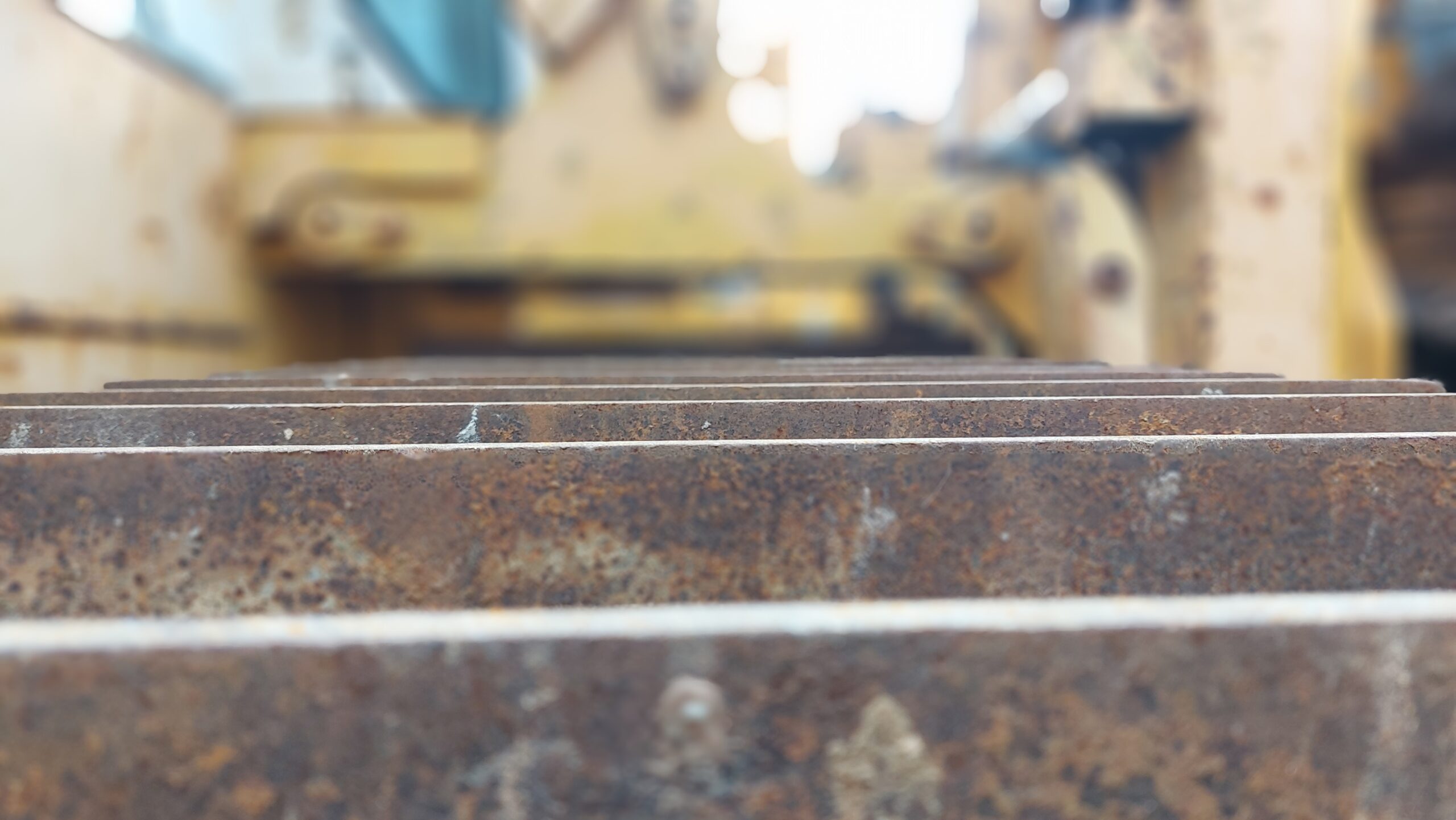

Lubricated single grouser track pads 914/610 mm -
Optional equipment
Welding platform with 100 kVA generator / JIB
0-11 km/h infinitely variable travel speed (forward and reverse)
Frequently Asked Questions
Frequently Asked Questions
Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present.
Maats' servicesWe provide a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment and more. Please visit our Equipment page for the full delivery program and specifications.
Go to Equipment pageYes, we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that suits your specific project requirements.
Read moreAbsolutely! All our equipment is inspected, certified and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.
Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.
Read moreDefinitely. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
The LIEBHERR RL22B Sideboom Pipelayer offers a lifting capacity of 21.200 kg with an operating weight of approximately 20.500 kg. It is powered by the Liebherr D924 T-E engine (97 kW), compliant with EU Stage IIIA and USA EPA Tier 3 emission standards, making it suitable for international pipeline projects where reliable non-AdBlue power units are preferred.
