LIEBHERR RL56 Litronic

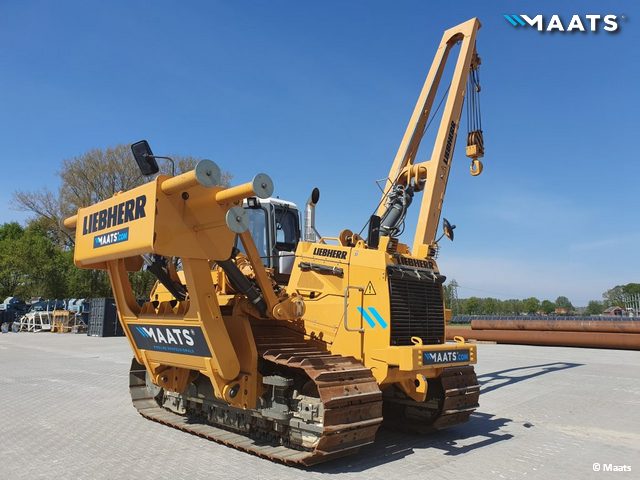

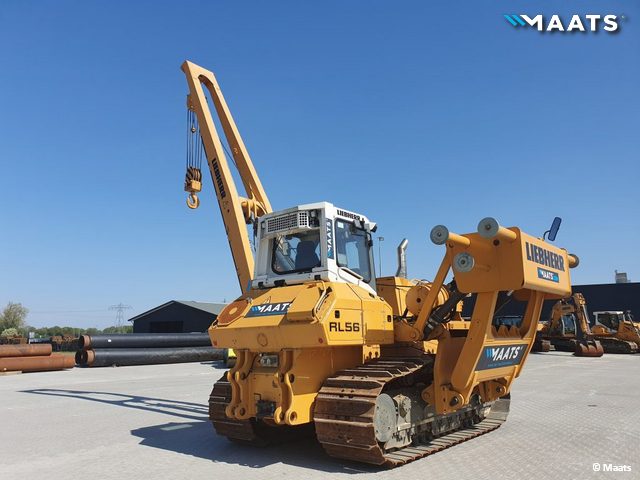

The LIEBHERR RL56 Litronic Sideboom Pipelayer offers a lifting capacity of 72.000 kg with an operating weight of approximately 46.280 kg. It is powered by the Liebherr D936 A7 engine (210 kW), compliant with EU Stage IV and USA EPA Tier 4 Final emission standards, using AdBlue technology for reduced emissions and fuel efficiency.

Lifting capacity: 72.000 kgs

Operating weight: 46.280 kgs

Engine: LIEBHERR D936 A7 (210 kW)

Manufacturer: LIEBHERR

Request information

Download leaflet

Looking for more lifting capacity?

Explore the LIEBHERR RL52 Litronic

Private: LIEBHERR RL52 Litronic Lifting capacity: 80.000 kgs

Need more information?

Please contact our sales department, they can and will be happy to help you.

+31 (0)547 260 000

info@maats.com

Specifications

Designed for high-performance pipeline handling, the RL56 combines strong lifting capability with precise control. The hydrostatic drive ensures smooth, stepless maneuvering under heavy load, while the long 8.500 mm boom with protection strips, hydraulic winch with free fall control and load monitoring system provide accurate and safe lifting dynamics. Units in the Maats rental fleet are equipped with a ROPS cab with heating and air conditioning, 914 mm track pads, centre track guide, acoustic back-up alarm and four removable counterweights, ensuring stability and operator comfort. With an integrated hydraulic PTO, Arctic kit and drawbar included as standard, the RL56 is configured for demanding pipeline projects in both standard and extreme climate conditions.

Certification CE
Engine make & model LIEBHERR D936 A7
Engine output 210 kW
Emission standards EU Stage IV & USA EPA Tier4F
Standard configuration ROPS cab with heating
Air conditioning
Long boom 8.500 mm with protection strips
Centre track guide
Track pads 914 mm
Acoustic back-up alarm
Four (04) removable counterweights
Hydraulic driven winch
Free fall control
Load monitoring system
Hydraulic PTO to drive a mandrel or a pipefacing machine
Arctic kit (-40 degrees)
Drawbar
Optional equipment Hydraulic PTO to drive a mandrel of pipefacing machine
Arctic kit (-40 degrees)

Frequently Asked Questions

Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present.

Maats' services

We provide a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment and more. Please visit our Equipment page for the full delivery program and specifications.

Go to Equipment page

Yes, we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that suits your specific project requirements.

Absolutely! All our equipment is inspected, certified and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.

Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.

Definitely. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
